NLL Substation Bolt Aluminum Alloy Tension Clamp & mkpuchi mkpuchi

Nkọwa dị mkpirikpi:


Nkọwa ngwaahịa

Mkpado ngwaahịa

Nkọwa:

NLL usoro aluminum alloy tensile mwekota maka ike nkesa, adabara n'elu ahịrị nke 10kV na n'okpuru, ike osisi na substations, ofu overhead insulated aluminum waya ma ọ bụ iferi ọla kọpa waya, ofu na akuku ma ọ bụ ọnụ insulator nke mkpanaka, otú The n'elu wires bụ. edozi ma ọ bụ gbasie ike, a na-ejikwa mkpuchi mkpuchi na-ekpuchi wires iji nye nchebe mkpuchi.

N'ihi na aluminom alloy na-abụghị nke hysteresis dị elu na usoro ọgwụgwọ okpomọkụ, ngwaahịa ahụ nwere uru nke ike dị elu na nkwụsị ala dị ala, ma bụrụ ihe kwesịrị ekwesị na-echekwa ume kwesịrị ịkwalite.Ụlọ ọrụ anyị ewepụtala usoro NLLJ nke ngwaahịa dị elu gbanwetụrụ na-arụ ọrụ na-ejide onwe ya dịka ihe onye ọrụ chọrọ si dị, nke nwere ike izute ike ijide ihe achọrọ nke waya mkpuchi na-enweghị peeling.

Atụmatụ nhazi:

1. Na-abụghị teepu elu-ike aluminum alloy ahu na elu ike na ala akara ọnwụ

2. A na-ejikọta ngọngọ nrụgide na bọtịnụ "U", nke dị nnọọ mma iji wụnye.

3. A na-ejikọta bọtịnụ "U" ọ bụla na nke dị iche iche iji hụ na nrụgide kọntaktị otu

Atụmatụ mkpuchi mkpuchi:

1.Power ugboro na-eguzogide voltaji: ≥45kV maka 1 nkeji na-enweghị mmebi, ọ dịghị flashover;

2.Mkpuchi mkpuchi:> 1.0 × 1014Ω

3.Ambient okpomọkụ: -300 °C ~ 900C

4.Weather mgbochi: arụmọrụ dị mma mgbe awa 1008 nke ule ihu igwe artificial

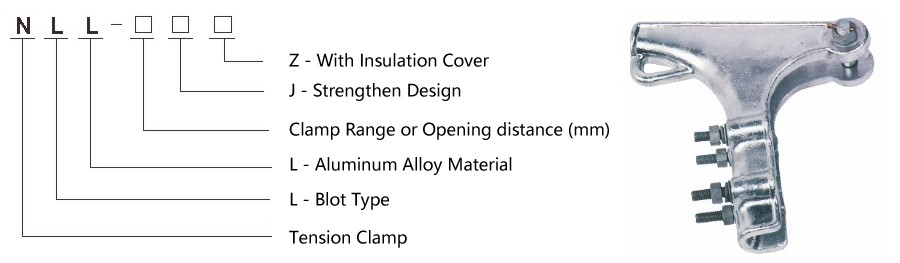

as

Ụdị

JKLY10(1) Ihe nrụnye nrụnye n'elu Aluminom Stranded Wire Stripping Specifications (mm2)(10kV)

JKLY10(1) Ihe nrụnye mkpuchi ọla kọpa isi Aluminom Stranded Wire Stripping nkọwa nrụnye (mm2)(1kV)

Oke njigide (mm)

U ịghasa

Isi akụkụ

Ibu ọdịda aha aha
(kN)

Ihe Nlereanya mkpuchi mkpuchi dakọtara

Nọmba

Dayameta

C

M

NLL-190

35-95

35-50

Φ7.6 ~ 16.5

2

M10

19.0

14

40

NLLZ-190

NLL-230

95-150

70-95

Φ8.5 ~ 20

2

M12

23.0

16

50

NLLZ-230

NLL-285

150-240

120-150

Φ11.4 ~ 23

2

M12

28.5

16

60

NLLZ-285

NLL-320

240-300

/

Φ12.7 ~ 26.5

2

M12

32.0

16

60

NLLZ-320

NLL-320J

/

150-185

Φ12.7 ~ 26.5

4

M12

32.0

16

70

NLLZ-320J

NLL-350

/

240-300

Φ13 ~ 30

4

M14

35.0

16

80

NLLZ-350

1. A pụkwara iji ngwaahịa a maka iwepụ nrụnye.Mgbe ị na-ewepụ ma na-etinye ya, a ga-ekpuchi eriri aluminom ka ọ ghara imebi waya ahụ.Mgbe a na-etinye ihe ndọpụ, dịka oke nke clip na dayameta mpụta kwekọrọ na ngwugwu ahụ.

2. Ọ bụrụ na ị na-enye ngwaahịa na mkpuchi mkpuchi, biko tinye Z mgbe nọmba nlereanya, dị ka "NLL-230Z";Ọ bụrụ na ịzụrụ mkpuchi mkpuchi iche iche, biko họrọ dị ka tebụl nhọrọ, dị ka "NLLZ-230"
